47.251.16 | Kendrion Kuhnke

Choke check valve, 0.5-8 bar, 47.251.16

Order No.: 60G651
EAN: 4099891490348
MPN:
47.251.16
Series: 47

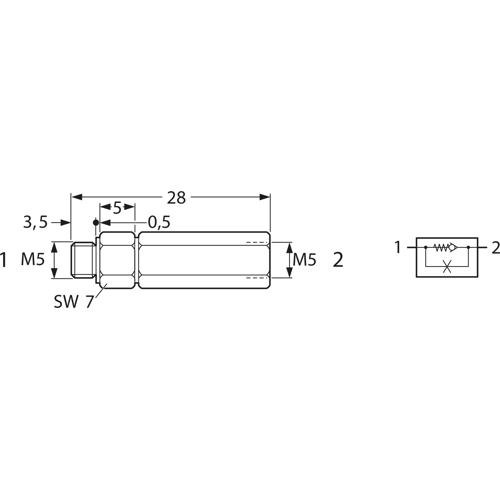

47.251.16 Kendrion Kuhnke Valves Image 1
47.251.16 Kendrion Kuhnke Valves Image 2
Image may differ
Unit Price (€ / pc.)
67.5682 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
67.57 € *
Price list
Quantity
Price per unit*
1 pcs.
67.5682 €
5 pcs.
63.5222 €
15 pcs.
61.0827 €
50 pcs.
58.3814 €
150 pcs.
55.9419 €
*incl. VAT plus shipping costs
Subject to prior sale

Check valves, type Kuhnke 47.

For adjusting flow volumes and cylinder speed, very fine regulating circuit, optimal coordination of the spindle rotation with setup characteristics; Pressure range: max. 8.0 bar. Rated width: 2.0 mm. Housing material: brass. Choke needle: stainless steel. Mounting position: any. Pressurized media fitting: M 5. Medium: filtered, oiled, or filtered and non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.

One-way flow restrictors with fixed orifice, type 47.251.

Can be used to reduce the flow rate to low and constant values (e.g. in time control systems; Pressure range: 0.5 to 8.0 bar.

Type: 47.251.16, with fixed orifice 0.16 mm

Technical specifications
Version choke check valve
Connection M5 connector
Pressure range 0.5-8 bar
Nominal width 0.16 mm
Logistics
Country of origin IT
Customs tariff number 84818059
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
