47.220 | Kendrion Kuhnke
Choke valve, 0-8 bar, 47.220
Unit Price (€ / pc.)
68.4607 € *
Available: 113 pcs.
Leadtime: 12 Weeks **
Total Price:
68.46 € *
Price list
Quantity
Price per unit*
1 pcs.
68.4607 €
5 pcs.
64.3433 €
15 pcs.
61.8919 €
50 pcs.
59.1430 €
150 pcs.
56.6797 €
*incl. VAT plus shipping costs
**Subject to prior sale
Check valves, type Kuhnke 47.
For adjusting flow volumes and cylinder speed, very fine regulating circuit, optimal coordination of the spindle rotation with setup characteristics; Pressure range: max. 8.0 bar. Rated width: 2.0 mm. Housing material: brass. Choke needle: stainless steel. Mounting position: any. Pressurized media fitting: M 5. Medium: filtered, oiled, or filtered and non-oiled compressed air, or other gaseous media with viscosity in accordance with ISO-VG 10. Ambient temperatures: –10 to +70 °C.

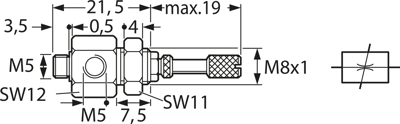

Choke valves, type 47.220.
The choke is closed with clockwise turns.
Type: 47.220, choke valve
Technical specifications
| Connection | M5 Steckverbinder | |
| Version | Drosselventil | |
| Pressure range | 0-8 bar | |
| Nominal width | 2 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
