47.081 | Kendrion Kuhnke
Supply air throttle, 12 bar, 47.081
Unit Price (€ / pc.)
46.5885 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
46.59 € *
Price list
Quantity
Price per unit*
1 pcs.
46.5885 €
10 pcs.
41.0074 €
25 pcs.
39.5913 €
50 pcs.
38.4846 €
*incl. VAT plus shipping costs
Subject to prior sale

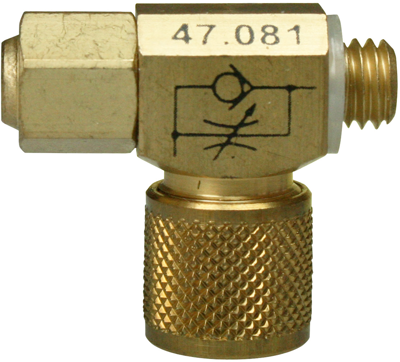

One-way flow restrictors in banjo fittings, type Kuhnke 47.0.
For direct screw-mounting into valve and cylinder threads.
With union nut, type 47.080/81.

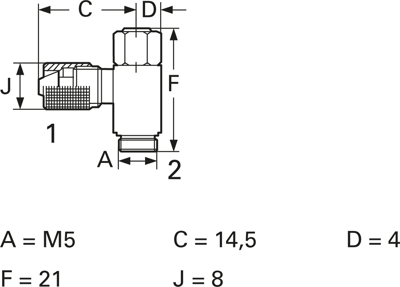

One side with M 5 thread (dimension A), opposing side with 6 x 1 tubing coupling; Dimensions (mm): C 14.5, D 4.0, F 21, J 9.0.
Type: 47.081, inlet choke
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | threaded connection M5 | |
| Pressure range | 12 bar | |
| Version | supply air throttle |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84818059 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
