47.071 | Kendrion Kuhnke

Supply air throttle, 12 bar, 47.071

Order No.: 63G222
EAN: 4099891492830
MPN:
47.071
Series: 47
47.071 Kendrion Kuhnke Valves Image 1
47.071 Kendrion Kuhnke Valves Image 2
Image may differ
Unit Price (€ / pc.)
44.4346 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
44.43 € *
Price list
Quantity
Price per unit*
1 pcs.
44.4346 €
10 pcs.
39.0915 €
25 pcs.
37.7706 €
50 pcs.
36.6996 €
*incl. VAT plus shipping costs
Subject to prior sale

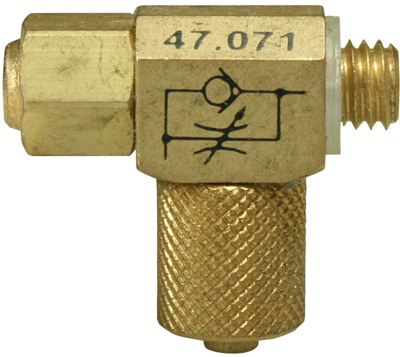

One-way flow restrictors in banjo fittings, type Kuhnke 47.0.

For direct screw-mounting into valve and cylinder threads.

With union nut, type 47.070/71.

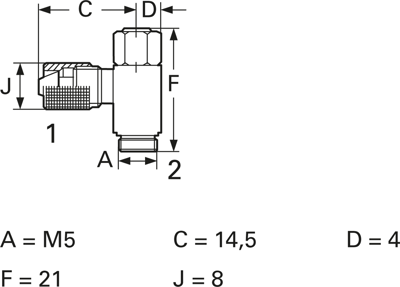

Thread M 5 (dimension A) connection to screw fitting for 5 x 1 tubing; Dimensions: C 14.5, D 4.0, F 21, J 8.0 mm.

Type: 47.071, inlet choke

Technical specifications
Filter Property Value
Pressure range 12 bar
Connection threaded connection M5
Version supply air throttle
Logistics
Property Value
Country of origin IT
Customs tariff number 84818059
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
