46.000 | Kendrion Kuhnke
3/2-way NC poppet valve, 0-12 bar, 46.000
Unit Price (€ / pc.)
141.2054 € *
Available: 6 pcs.
Total Price:
141.21 € *
Price list
Quantity
Price per unit*
1 pcs.
141.2054 €
3 pcs.
136.9690 €
10 pcs.
132.2685 €
25 pcs.
128.7342 €
100 pcs.
123.1055 €
*incl. VAT plus shipping costs
Subject to prior sale
Mechanical seat valves, type Kuhnke 46.00.

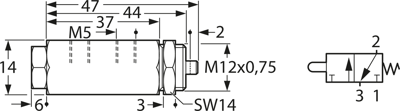

3/2-way valve (non-intersecting) with narrow housing and M12 x 0.75 bushing mount; Features: long useful life. Spring-loaded return mechanism. Pressure range: 12 bar. Rated bore: 2 (2.0 mm). Operating temperatures: –10 to +70 °C. Housing: hexagon, CuZn. Plunger: CrNi steel, corrosion-proof. Seals: oil-proof Perbunan. Mounting position: any. Pressure media connection: M 5. Media for operation: filtered, oiled or filtered oil-free compressed air or other gaseous media with viscosity in accordance with ISO-VG 10. Mode of operation: NC (in zero position).
With plunger, type 46.000.
Actuating stroke: approx. 2.0 mm. Actuating force (pressure-dependent) at 6.0 bar: approx. 13 N/m.
Type: 46.000, poppet valve
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 3/2-way NC poppet valve | |
| Nominal width | 2 mm | |
| Pressure range | 0-12 bar | |
| Connection | M5 connector |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84812090 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
