50.805.00.10.00 | Kendrion Kuhnke
Pressure regulator, 50.805.00.10.00, up to 1.0 bar, yes
Order No.: 62G220
EAN: 4099891491772
MPN:
50.805.00.10.00
Unit Price (€ / pc.)
159.5314 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
159.53 € *
Price list
Quantity
Price per unit*
1 pcs.
159.5314 €
10 pcs.
143.5854 €
25 pcs.
139.5989 €
50 pcs.
136.3978 €
*incl. VAT plus shipping costs
Subject to prior sale

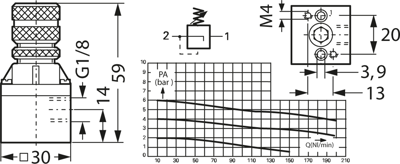

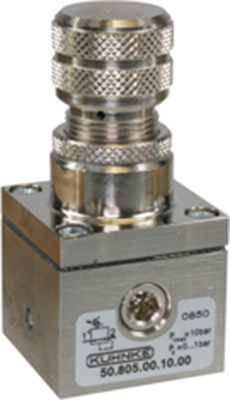

Pressure regulators for base panel mounting, type Kuhnke 50.805.00.
With G 1/8 pressure gage fitting; Pressure range: max. 10 bar. Housing material: galvanized brass, nickel-plated. Diaphragm: NBR, fabric-reinforced. Medium: non-aggressive media. Base panel fitting: 2 x 3.9 mm. Ambient temperatures: 0 to +60 °C.
Technical attributes (type, pressure adjustment range, secondary bleeder port yes/no): 50.805.00.10.00, up to 1.0 bar, yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure range | 10 bar | |
| Pressure range of setting | up to 1 bar | |
| Medium | non-aggressive media | |
| Connection | on base plate 2 x 3.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84818059 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
