48.250.00.10.00 | Kendrion Kuhnke
Pressure regulator, 48.250.00.10.00, up to 1.0 bar, yes
Order No.: 62G200
EAN: 4099891491734
MPN:
48.250.00.10.00
Unit Price (€ / pc.)
100.2337 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
100.23 € *
Price list
Quantity
Price per unit*
1 pcs.
100.2337 €
5 pcs.
94.2242 €
10 pcs.
87.6197 €
25 pcs.
81.4912 €
*incl. VAT plus shipping costs
Subject to prior sale

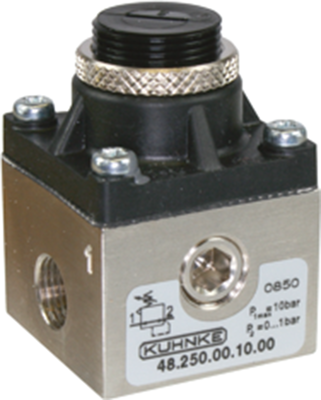

Pressure regulators with G 1/8 fitting, type Kuhnke 48.250.00.
Pressure range: max. 10 bar. Housing material: galvanized brass, nickel-plated/plastic. Diaphragm: NBR, fabric-reinforced. Medium: non-aggressive media. Input: G 1/8 fitting. Output: connection 3 x G 1/8. Ambient temperatures: 0 to +60 °C.
Technical attributes (type, pressure adjustment range, secondary bleeder port yes/no): 48.250.00.10.00, up to 1.0 bar, yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure range | 10 bar | |
| Pressure range of setting | up to 1 bar | |
| Medium | non-aggressive media | |
| Connection | 1 x G 1/8 and 3 x G 1/8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84818059 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
