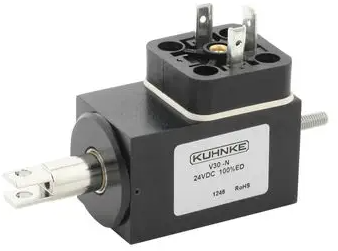

V30-N-24VDC 100% ED | Kendrion Kuhnke
Solenoid 24 VDC
Active
Total price
(
208.7855 €
* / pcs.)
208.79 €
Available: 2 pcs.
Quantity
Price per unit*
1 pcs.
208.7855 €
2 pcs.
200.4317 €
5 pcs.
188.4008 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Kendrion Kuhnke at Bürklin Elektronik
V30-N* - - 24VDC 100%ED
Technical specifications
| Initial force | 3.7 N | |
| Connection | stranded wires | |
| Version | thrust and pull | |
| On Period | 100 % ED | |
| Final force | 5.8 N | |
| Stroke | 6 mm | |
| Power | 9.2 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | No |
Logistics
| Country of origin | DE |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
