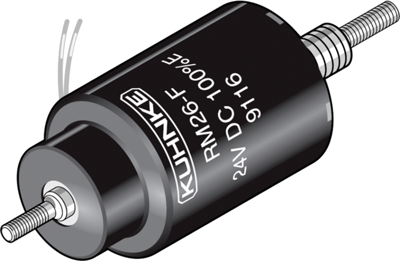

Heavy-duty linear solenoid, RM 26-R-F-24VDC, 100 % duty cycle
Active
Product by Kendrion Kuhnke at Bürklin Elektronik
Heavy-duty linear solenoids, type Kuhnke RM 26.
With internal return spring, single-action, combination solenoid (pull and thrust solenoid), maintenance-free armature bearings (DU bearings) for highest demands; Rated stroke: 4.0 mm. Rated voltage: 24 VDC. Rated power: 5.5 W. Initial force: 1.9 N. Final force: 6.0 N. Reliable relative duty cycle: 100%. Connection: 100 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS. Solenoid weight: approx. 117 g. Armature weight: approx. 24 g.
Type: RM 26-R-F-24VDC 100 % duty cycle, linear solenoid
| Initial force | 1.9 N | |
| Connection | stranded wires | |
| Version | thrust or pull | |
| On Period | 100 % ED | |
| Final force | 6 N | |
| Stroke | 4 mm | |
| Power | 5.5 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | Yes |
| Country of origin | DE |
| Customs tariff number | 85059029 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
