HU 244-F-24VDC 100% ED | Kendrion Kuhnke

Linear solenoid, HU 244-F-24VDC, 100 % duty cycle

Order No.: 27G116
EAN: 4099889489439
MPN:
HU 244-F-24VDC 100% ED
Series: HU24
Kendrion Kuhnke

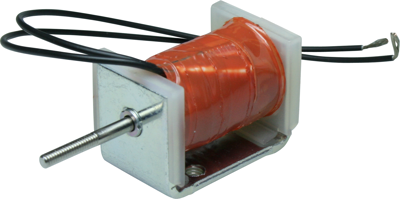

HU 244-F-24VDC 100% ED Kendrion Kuhnke Linear Solenoids Image 1
HU 244-F-24VDC 100% ED Kendrion Kuhnke Linear Solenoids Image 2
Image may differ
Unit Price (€ / pc.)
33.2724 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
33.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
26 pcs.
33.2724 €

Linear solenoids, type Kuhnke HU 24.

Open design with open yoke, thrust solenoid; Rated stroke: 4.0 mm. Rated voltage: 24 VDC. Rated power: 2.9 W. Initial force: 0.3 N. Final force: 0.7 N. Approved relative duty cycle (ED): 100%. Connections: 100 mm stranded wires with free ends. Insulation class: E. Temperature limit: +120 °C. Test voltage: 800 VRMS. Solenoid weight: approx. 27 g. Armature weight: approx. 5.0 g.

Type: HU 244-F-24VDC duty cycle 100%, linear solenoid

Technical specifications
Initial force 0.3 N
Connection stranded wires
Version pushing or pulling
On Period 100 % ED
Final force 0.7 N
Stroke 4 mm
Power 2.9 W
Rated voltage (DC) 24 V
Logistics
Country of origin RO
Customs tariff number 85059029
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
