HM 207-F-24VDC 100% ED | Kendrion Kuhnke
HUBMAGNET HM207

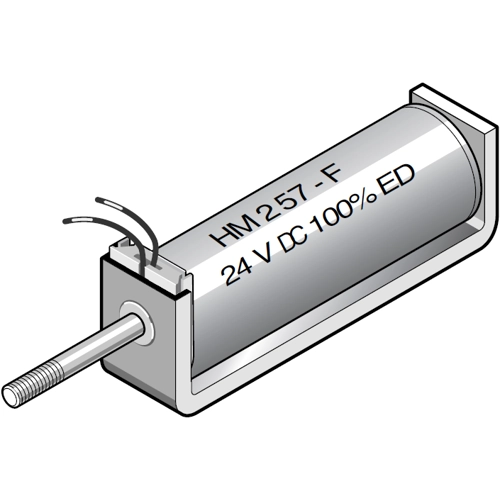

Image may differ
Total price
( 44.4465 € * / pcs.)
44.45 €
Available: 22 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
44.4465 €
5 pcs.
41.7809 €
15 pcs.
40.1744 €
50 pcs.
38.4013 €
150 pcs.
36.8067 €
*incl. VAT plus shipping costs
Description
Linear Solenoid, HM 207-F-24VDC 100% ED, Kuhnke
Thrust or pull type with magnet: 67 g and insulation group: VDE 0110 B 75.
Technical Data
- Connection: Wire
- Design: thrust or pull
- Voltage: 24 V
- Power: 4.5 W
Technical specifications
| Initial force | 2.8 N | |
| Connection | stranded wires | |
| Version | thrust or pull | |
| On Period | 100 % ED | |
| Final force | 7.8 N | |
| Stroke | 5 mm | |
| Power | 4.5 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | No |
Logistics
| Country of origin | RO |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
