193368 | Kendrion Kuhnke

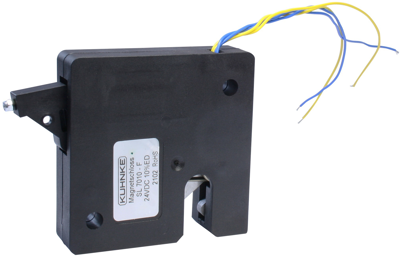

Magnet Lock, SL7010, self-locking, -F-24VDC10%ED
Images may differ
Total price
(
108.1472 €
* / pcs.)
108.15 €
Available: 7 pcs.
Quantity
Price per unit*
1 pcs.
108.1472 €
2 pcs.
102.7327 €
5 pcs.
95.5451 €
10 pcs.
89.8093 €
*incl. VAT plus
shipping costs
Description
Product by Kendrion Kuhnke at Bürklin Elektronik
Solenoid door lock, 193368, Kuhnke
The solenoid door lock integrates a high-performance linear solenoid, which has monostable (self-locking) and bistable design (active-locking).
Features
- Emergency opener
- High lifetime
- Detection of door position and locking progress
Technical specifications
| Connection | stranded wires | |
| Version | self-locked | |
| On Period | 10 % ED | |
| Stroke | 1 mm | |
| Power | 36 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | No |
Logistics
| Country of origin | DE |
| Customs tariff number | 83014090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
1 item in 2 variations
*incl. VAT plus
shipping costs
Order No.:
27G229
Manufacturer:
Kendrion Kuhnke
Manufacturer SKU:
193449
1 pcs.
112.0147 €
2 pcs.
107.5284 €
5 pcs.
102.1496 €
10 pcs.
98.0679 €
112.01 € *
Available: 1 pcs.
active-locked
1 mm
stranded wires
24 V
10 % ED
36 W
Order No.:
27G228
Manufacturer:
Kendrion Kuhnke
Manufacturer SKU:
193368
1 pcs.
108.1472 €
2 pcs.
102.7327 €
5 pcs.
95.5451 €
10 pcs.
89.8093 €
108.15 € *
Available: 7 pcs.
self-locked
1 mm
stranded wires
24 V
10 % ED
36 W
*incl. VAT plus
shipping costs
**Subject to prior sale
