HT-D50-F-24VDC 100% ED | Kendrion Kuhnke

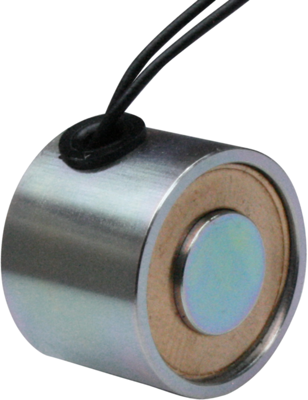

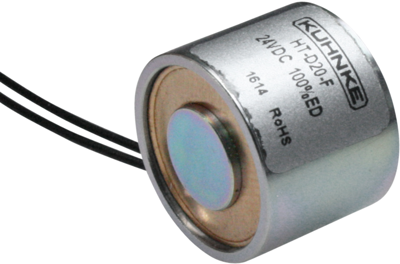

Holding solenoid, HT-D 50-F-24VDC, 100 % duty cycle, 750 N, 11 W, 350 g
Unit Price (€ / pc.)
111.8005 € *
Standard delivery time from the manufacturer is: 2 Weeks
Holding solenoids, type Kuhnke HT-D.
Design: cylindrical. Rated voltage: 24 VDC. Approved relative duty cycle: 100 %. Connection: 200 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS.
Technical attributes (type, adhesion, rated power, weight): HT-D 50-F-24VDC 100 % duty cycle, 750 N, 11 W, 350 g
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Holding force | 750 N | |
| On Period | 100 % ED | |
| Power | 11 W | |
| Connection | stranded wires | |

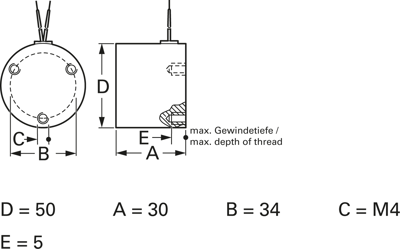

| diameter | 50 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85059029 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
