HT-D40-F-24VDC 100% ED | Kendrion Kuhnke

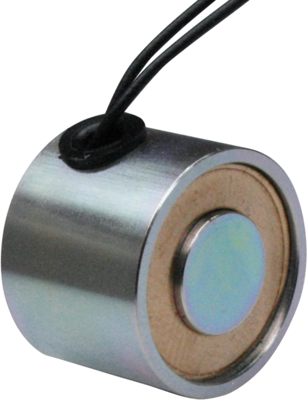

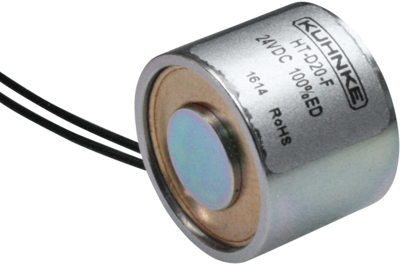

Holding solenoid, HT-D 40-F-24VDC, 100 % duty cycle, 400 N, 6.0 W, 230 g
Unit Price (€ / pc.)
141.8837 € *
Available: 19 pcs.
Total Price:
141.88 € *
Price list
Quantity
Price per unit*
1 pcs.
141.8837 €
3 pcs.
137.6354 €
10 pcs.
132.8992 €
25 pcs.
129.3411 €
100 pcs.
123.6767 €
*incl. VAT plus shipping costs
Subject to prior sale
Holding solenoids, type Kuhnke HT-D.
Design: cylindrical. Rated voltage: 24 VDC. Approved relative duty cycle: 100 %. Connection: 200 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS.
Technical attributes (type, adhesion, rated power, weight): HT-D 40-F-24VDC 100 % duty cycle, 400 N, 6.0 W, 230 g
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Holding force | 400 N | |
| On Period | 100 % ED | |
| Power | 6 W | |
| Connection | stranded wires | |

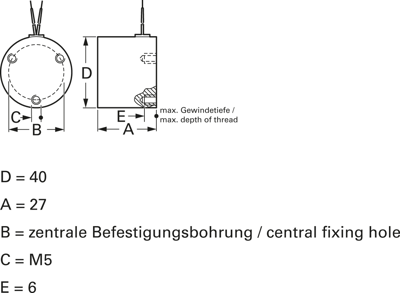

| diameter | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85059029 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
