HT-D30-F-24VDC 100% ED | Kendrion Kuhnke

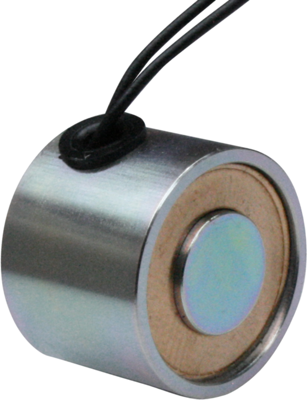

Holding solenoid, HT-D 30-F-24VDC, 100 % duty cycle, 200 N, 3.8 W, 130 g
Unit Price (€ / pc.)
106.7906 € *
Standard delivery time from the manufacturer is: 7 Weeks
Holding solenoids, type Kuhnke HT-D.
Design: cylindrical. Rated voltage: 24 VDC. Approved relative duty cycle: 100 %. Connection: 200 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS.
Technical attributes (type, adhesion, rated power, weight): HT-D 30-F-24VDC 100 % duty cycle, 200 N, 3.8 W, 130 g

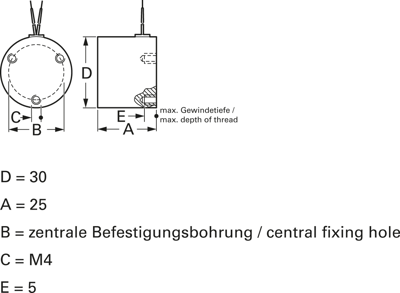

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Holding force | 200 N | |
| On Period | 100 % ED | |
| Power | 3.8 W | |
| Connection | stranded wires | |
| diameter | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85059029 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
