HT-D20-F-24VDC 100% ED | Kendrion Kuhnke

Holding solenoid, HT-D 20-F-24VDC, 100 % duty cycle, 40 N, 2.5 W, 25 g

Order No.: 27G220
EAN: 4099889490008
MPN:
HT-D20-F-24VDC 100% ED
Series: HTD

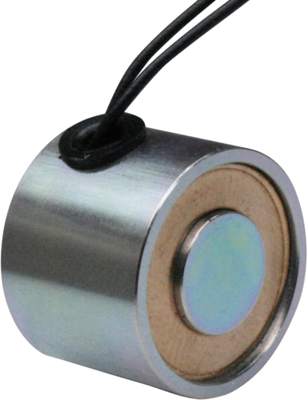

HT-D20-F-24VDC 100% ED Kendrion Kuhnke Holding Solenoids Image 1

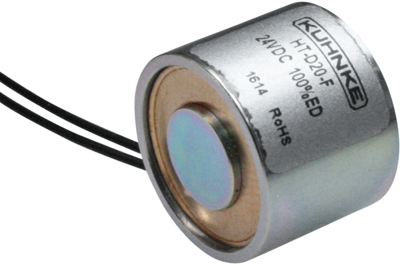

HT-D20-F-24VDC 100% ED Kendrion Kuhnke Holding Solenoids Image 2

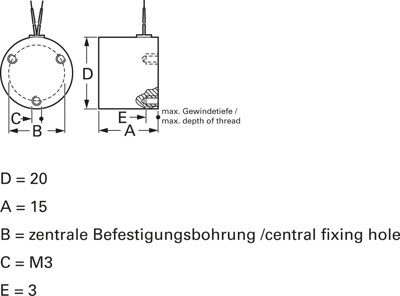

HT-D20-F-24VDC 100% ED Kendrion Kuhnke Holding Solenoids Image 3
Image may differ
Unit Price (€ / pc.)
76.8978 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
76.90 € *
Price list
Quantity
Price per unit*
1 pcs.
76.8978 €
5 pcs.
73.5777 €
10 pcs.
70.5194 €
*incl. VAT plus shipping costs
Subject to prior sale

Holding solenoids, type Kuhnke HT-D.

Design: cylindrical. Rated voltage: 24 VDC. Approved relative duty cycle: 100 %. Connection: 200 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS.

Technical attributes (type, adhesion, rated power, weight): HT-D 20-F-24VDC 100 % duty cycle, 40 N, 2.5 W, 25 g

Technical specifications
Rated voltage (DC) 24 V
Holding force 80 N
On Period 100 % ED
Power 2.5 W
Connection stranded wires
diameter 2 mm
Logistics
Country of origin DE
Customs tariff number 85059029
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
