AIRBOX 1-F-GE-MO | Kendrion Kuhnke

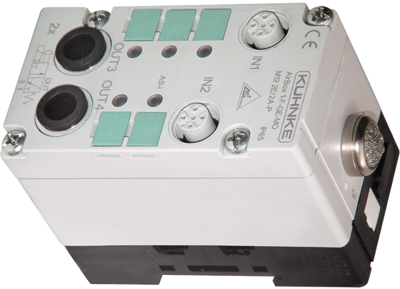

AS interface module, pneumatic, AIRBOX 1-F-GE-MO
Unit Price (€ / pc.)
429.7447 € *
Available: 3 pcs.
Next delivery: 2 pcs. on 2025-11-10
Total Price:
429.74 € *
Price list
Quantity
Price per unit*
1 pcs.
429.7447 €
10 pcs.
410.3477 €
25 pcs.
386.5239 €
50 pcs.
357.7973 €
*incl. VAT plus shipping costs
Subject to prior sale
Pneumatic AS interface module
type: AirBox 1-F-GE-MO
2 digital inputs, 2 independently controllable 3/2-way valves; Configuration: 3/F/F/F. Current consumption: max. 200 mA. Air flow rate: 350 to 550 Nl/min (at 6.0 bar). Dimensions: 80 x 45 x 48 mm (L x B x H), filtered, yellow/yellow, monostable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of inputs | 2 | |
| AS-i-Specification | 2.0 | |
| Pressure range | 2-8 bar | |
| Voltage | 18-30 VDC | |
| Product type | AS-Interface module | |
| Version | pneumatic |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
