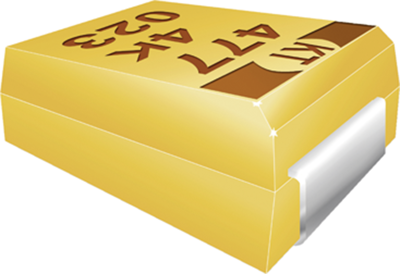

T521X476M035ATE030 | Kemet
Talantum capacitor, SMD, X, 47 µF, 35 V, ±20 %, T521X476M035ATE030
Unit Price (€ / pc.)
2.4157 € *
Standard delivery time from the manufacturer is: On Request
SMD, Tantalum capacitor, T521X476M035ATE030, Kemet
The KEMET Organic Capacitor (KO-CAP) is a tantalum capacitor with a Ta anode and Ta2 O5 dielectric. A conductive organic polymer replaces the traditionally used MnO2 as the cathode plate of the capacitor.This results in very low ESR and improved capacitance retention at high frequency.
FEATURES
- Volumetric efficiency
- Low profile design
- High ripple current capability
- Benign failure mode
Technical Data
- Capacity: 47 µF
- Nominal voltage: 35 V
- Size: X
- Tolerance: ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 35 V | |
| Size | X | |
| max. operating temperature | 125 °C | |
| Capacity | 47 µF | |
| Ripple current | 2.9 A | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 30 mΩ | |
| Tolerance | ±20 % | |

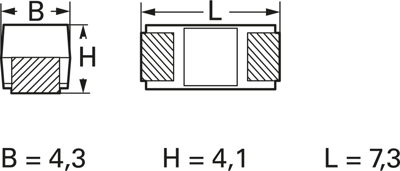

| Length | 7.3 mm | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85322100 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
