T495X686K020ATE200 | Kemet

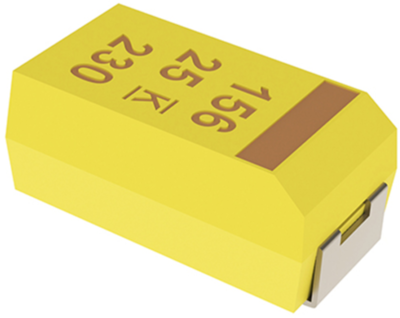

Talantum capacitor, SMD, X, 68 µF, 20 V, ±10 %, T495X686K020ATE200
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: On Request
SMD, Tantalum capacitor, T495X686K020ATE200, Kemet
The low ESR, surge-robust T495 Series is designed for demanding applications that require high surge current and high ripple current capability. This series builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.This series is classified as MSL (Moisture Sensitivity Level) 1.
Features
- 100% steady-state accelerated aging
- High surge current capability
- Extended range values
- High ripple current capability
Technical Data
- Capacity: 68 µF
- Nominal voltage: 20 V
- Size: X
- Tolerance: ±10 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 908 mA | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Size | X | |
| Rated voltage (DC) | 20 V | |
| Tolerance | ±10 % | |
| Capacity | 68 µF | |
| ESR (Equivalent Series Resistance) | 200 mΩ | |
| Design | SMD | |

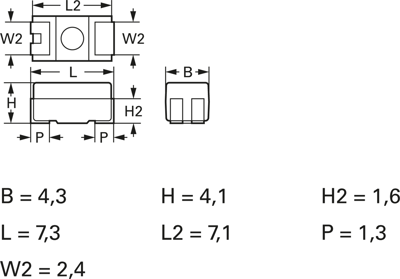

| Length | 7.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322100 |
| Country of origin | PT |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
