T495D686K020ATE070 | Kemet

Talantum capacitor, SMD, D, 68 µF, 20 V, ±10 %, T495D686K020ATE070

Order No.: 26D243
EAN: 4099879880758
MPN:
T495D686K020ATE070
Series: T495

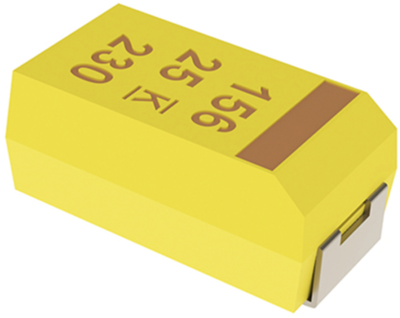

T495D686K020ATE070 Kemet Tantalum Capacitors Image 1
T495D686K020ATE070 Kemet Tantalum Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Available: 311 pcs.
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
2 pcs.
2.0944 €
25 pcs.
1.8683 €
150 pcs.
1.6660 €
500 pcs.
1.5113 €
1000 pcs.
1.4399 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD, Tantalum capacitor, T495D686K020ATE070, Kemet

The low ESR, surge-robust T495 Series is designed for demanding applications that require high surge current and high ripple current capability. This series builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.This series is classified as MSL (Moisture Sensitivity Level) 1.

Features

  • 100% steady-state accelerated aging
  • High surge current capability
  • Extended range values
  • High ripple current capability

Technical Data

  • Capacity: 68 µF
  • Nominal voltage: 20 V
  • Size: D
  • Tolerance: ±10 %
Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 70 mΩ
Design SMD
max. operating temperature 125 °C
Capacity 68 µF
Size D
Ripple current 1.464 A
min. operating temperature -55 °C
Tolerance ±10 %
Rated voltage (DC) 20 V

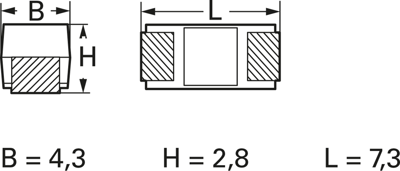

Length 7.3 mm
Logistics
Property Value
Country of origin MX
Original Packaging Reel with 500 pieces
Customs tariff number 85322100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
