T495D226K035ATE125 | Kemet
Talantum capacitor, SMD, D, 22 µF, 35 V, ±10 %, T495D226K035ATE125
Unit Price (€ / pc.)
2.2967 € *
Available: 879 pcs.
Leadtime: On Request **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
1.9159 €
100 pcs.
1.6422 €
250 pcs.
1.4756 €
1000 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

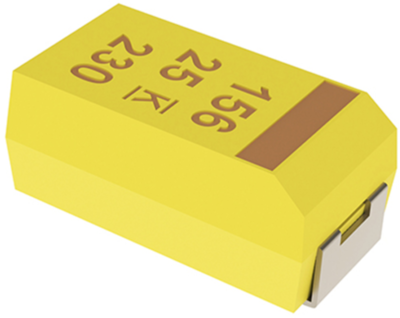

SMD, Tantalum capacitor, T495D226K035ATE125, Kemet
The low ESR, surge-robust T495 Series is designed for demanding applications that require high surge current and high ripple current capability. This series builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.This series is classified as MSL (Moisture Sensitivity Level) 1.
Features
- 100% steady-state accelerated aging
- High surge current capability
- Extended range values
- High ripple current capability
Technical Data
- Capacity: 22 µF
- Nominal voltage: 35 V

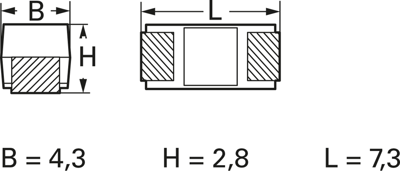

- Size: D
- Tolerance: ±10 %
Technical specifications
| Rated voltage (DC) | 35 V | |
| Capacity | 22 µF | |
| Length | 7.3 mm | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 125 mΩ | |
| min. operating temperature | -55 °C | |
| Size | D | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Ripple current | 1.095 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85322100 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
