T495D107K016ATE150 | Kemet

Talantum capacitor, SMD, D, 100 µF, 16 V, ±10 %, T495D107K016ATE150

Order No.: 25D1972
EAN: 4099879878854
MPN:
T495D107K016ATE150
B45197A3107K409
Series: T495

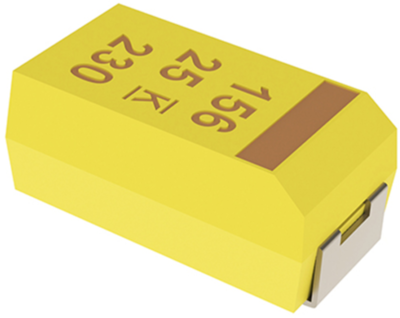

T495D107K016ATE150 Kemet Tantalum Capacitors Image 1
T495D107K016ATE150 Kemet Tantalum Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.7969 € *
Available: 203 pcs.
Total Price:
1.80 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7969 €
10 pcs.
1.2852 €
100 pcs.
1.0948 €
500 pcs.
0.9520 €
1000 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD, Tantalum capacitor, T495D107K016ATE150, Kemet

The low ESR, surge-robust T495 Series is designed for demanding applications that require high surge current and high ripple current capability. This series builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.This series is classified as MSL (Moisture Sensitivity Level) 1.

Features

  • 100% steady-state accelerated aging
  • High surge current capability
  • Extended range values
  • High ripple current capability

Technical Data

  • Capacity: 100 µF
  • Nominal voltage: 16 V
  • Size: D
  • Tolerance: ±10 %
Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 150 mΩ
Design SMD
max. operating temperature 125 °C
Capacity 100 µF
Size D
Ripple current 1 A
min. operating temperature -55 °C
Tolerance ±10 %
Rated voltage (DC) 16 V
Length 7.3 mm
Logistics
Property Value
Country of origin PT
Original Packaging Reel with 500 pieces
Customs tariff number 85322100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
