T356H226M025AT7301 | Kemet

Talantum capacitor, axial, H, 22 µF, 25 V, ±20 %, T356H226M025AT7301

Order No.: 26D535
EAN: 4099879881601
MPN:
T356H226M025AT7301
T356H226M025ACTR
Series: T356

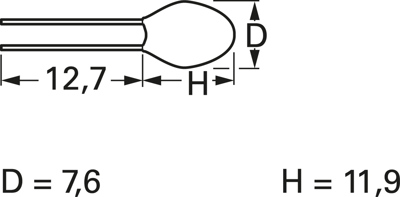

T356H226M025AT7301 Kemet Tantalum Capacitors Image 1
T356H226M025AT7301 Kemet Tantalum Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4,293.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
5.3669 €

Tantalum capacitors, type Kemet T 350/T356.

Drop shape with low residual current and low dielectric loss factor

Rated voltage 25 VDC.

Technical specifications
Rated voltage (DC) 25 V
Capacity 22 µF
diameter 7.6 mm
Grid 5.08 mm
Length 11.9 mm
Design axial
ESR (Equivalent Series Resistance) 1.5 Ω
min. operating temperature -55 °C
Size H
Tolerance ±20 %
max. operating temperature 85 °C
Logistics
Country of origin MX
Customs tariff number 85322100
Original Packaging Reel with 800 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
