R46KI21000001K | Kemet
MKP suppression capacitor, 10 nF, ±10 %, 560 V (DC), PP, 15 mm, R46KI21000001K
Unit Price (€ / pc.)
0.1821 € *
Standard delivery time from the manufacturer is: On Request
Suppression capacitor, type Kemet R46.
X2 capacitor, with polypropylene (MKP) dielectric
Rated voltage 275 VDC/560 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 10 nF | |
| Rated voltage (DC) | 560 V | |
| Rated voltage (AC) | 275 V | |
| Tolerance | ±10 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 15 mm | |
| Interference suppression class | X2 | |
| Number of pins | 2 | |

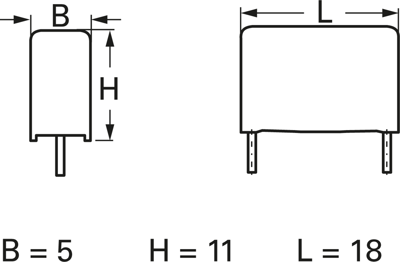

| Length | 18 mm | |
| Width | 5 mm | |
| Height | 11 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 2,000 pieces |
| Customs tariff number | 85322500 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
