F881AK472M300C | Kemet
MP suppression capacitor, 47 nF, ±20 %, 1 kV (DC), PP, 10 mm, F881AK472M300C
Unit Price (€ / pc.)
0.2261 € *
Standard delivery time from the manufacturer is: On Request

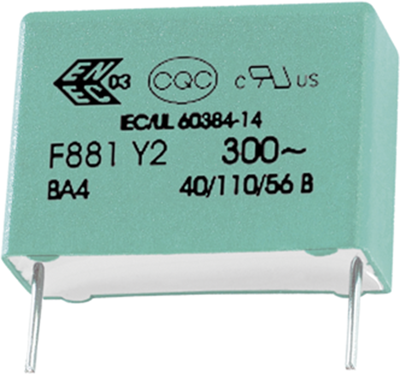

Suppression capacitor, type Kemet F881.
Y2 capacitor, with polypropylene (MKP) dielectric
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 47 nF | |
| Rated voltage (DC) | 1 kV | |
| Rated voltage (AC) | 300 V | |
| Tolerance | ±20 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 10 mm | |
| Interference suppression class | Y2 | |
| Number of pins | 2 | |

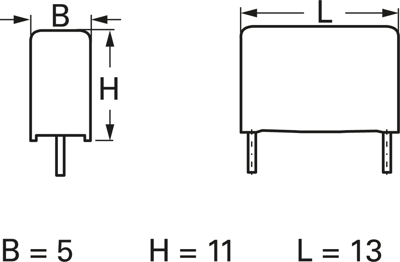

| Length | 13 mm | |
| Width | 5 mm | |
| Height | 11 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | US |
| Original Packaging | Bulk with 1,300 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
