F872DP224M480Z | Kemet

Name: MP suppression capacitor, 220 nF, ±20 %, 1 kV (DC), PP, 22.5 mm, F872DP224M480Z
Brand: Kemet
SKU: 62D710
Availability: InStock

MP suppression capacitor, 220 nF, ±20 %, 1 kV (DC), PP, 22.5 mm, F872DP224M480Z

Order No.: 62D710

EAN: 4099879861603

MPN:

F872DP224M480Z

Series: F872

Image may differ

Key Specification:

Capacity 220 nF

Rated voltage (DC) 1 kV

Rated voltage (AC) 480 V

Tolerance ±20 %

Dielectric material PP

Unit Price (€ / pc.)

2.5823 € *

Available: 95 pcs.

Total Price:

2.58 € *

Price list

Quantity

Price per unit*

1 pcs.

2.5823 €

10 pcs.

1.8445 €

100 pcs.

1.5827 €

500 pcs.

1.3685 €

1000 pcs.

1.2495 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

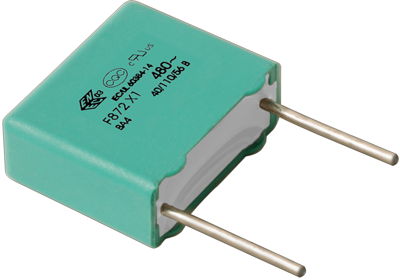

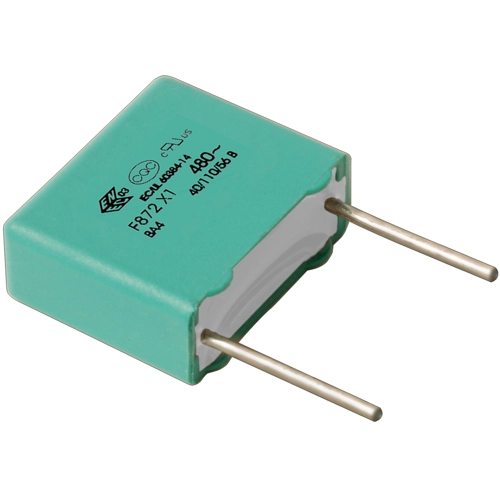

Suppression capacitor, type Kemet F872.

X1 capacitor with polypropylene (MKP) dielectric. Package and resin mold UL 94 V-0

Technical specifications

Filter	Property	Value
	Capacity	220 nF
	Rated voltage (DC)	1 kV
	Rated voltage (AC)	480 V
	Tolerance	±20 %
	Dielectric material	PP
	Design	radial
	Grid	22.5 mm
	Interference suppression class	X1
	Number of pins	2

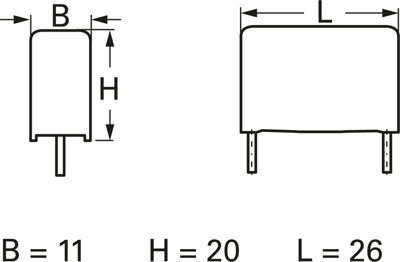

	Length	26 mm
	Width	11 mm
	Height	20 mm
	min. operating temperature	-40 °C
	max. operating temperature	110 °C
