SK050M1000B7F-1625 | Kemet

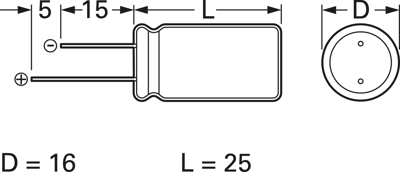

Electrolytic capacitor, 1000 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, SK050M1000B7F-1625
Discontinued
Unit Price (€ / pc.)
0.9163 € *
Available: 469 pcs.
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.5712 €
50 pcs.
0.4641 €
250 pcs.
0.3927 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Kemet Serie SK.
Wire connections on one side, for vertical PCB mounting, very high efficiency. Useful life 2000 h at +85 °C
Rated voltage 50 VDC, type SK050.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 1000 µF | |
| diameter | 16 mm | |
| max. operating temperature | 85 °C | |
| Length | 25 mm | |
| min. operating temperature | -40 °C | |
| Grid | 7.5 mm | |
| Ripple current | 1.06 A | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 50 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Bulk with 200 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
