SK035M0033B2F-0511 | Kemet

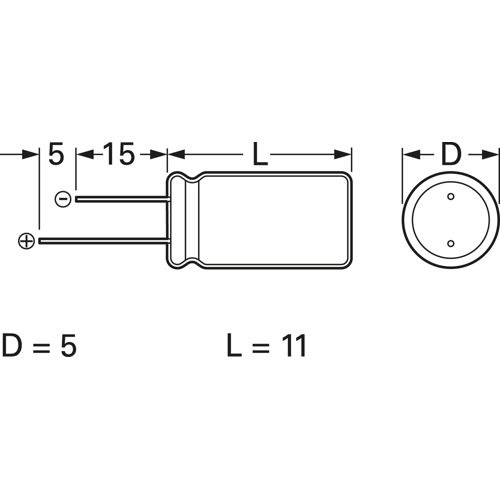

Electrolytic capacitor, 33 µF, 35 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, SK035M0033B2F-0511
Unit Price (€ / pc.)
0.0571 € *
Available: 181 pcs.
Available in 4 Days: 9,070 pcs. - if ordered today
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0571 €
300 pcs.
0.0345 €
1000 pcs.
0.0238 €
3000 pcs.
0.0202 €
10000 pcs.
0.0167 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Kemet Serie SK.
Wire connections on one side, for vertical PCB mounting, very high efficiency. Useful life 2000 h at +85 °C
Rated voltage 35 VDC, type SK035.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Design | radial | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Capacity | 33 µF | |
| diameter | 5 mm | |
| Ripple current | 85 mA | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| Rated voltage (DC) | 35 V | |
| Length | 11 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 500 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
