SK025M2200B5S-1325 | Kemet

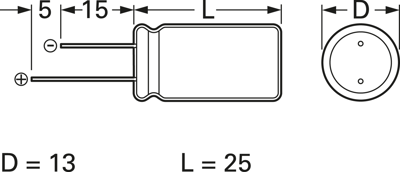

Electrolytic capacitor, 2200 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 13 mm, SK025M2200B5S-1325
Unit Price (€ / pc.)
0.6664 € *
Available: 230 pcs.
Available in 4 Days: 3,200 pcs. - if ordered today
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.4165 €
50 pcs.
0.3332 €
250 pcs.
0.2820 €
1000 pcs.
0.2428 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Kemet Serie SK.
Wire connections on one side, for vertical PCB mounting, very high efficiency. Useful life 2000 h at +85 °C
Rated voltage 25 VDC, type SK025.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 25 V | |
| Capacity | 2200 µF | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| diameter | 13 mm | |
| Tolerance | ±20 % | |
| Length | 25 mm | |
| Version | polar | |
| max. operating temperature | 85 °C | |
| Ripple current | 1.23 A | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 200 pieces |
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
