SK025M0100BZF-0611 | Kemet
Electrolytic capacitor, 100 µF, 25 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6 mm, SK025M0100BZF-0611
Unit Price (€ / pc.)
0.0821 € *
Available: 1,060 pcs.
Available in 4 Days: 7,032 pcs. - if ordered today
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0821 €
10 pcs.
0.0714 €
100 pcs.
0.0512 €
300 pcs.
0.0369 €
1000 pcs.
0.0309 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Kemet Serie SK.
Wire connections on one side, for vertical PCB mounting, very high efficiency. Useful life 2000 h at +85 °C
Rated voltage 25 VDC, type SK025.

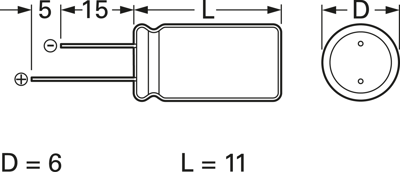

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 100 µF | |
| diameter | 6 mm | |
| max. operating temperature | 85 °C | |
| Length | 11 mm | |
| min. operating temperature | -40 °C | |
| Grid | 2.5 mm | |
| Ripple current | 145 mA | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
