SH 35V/1000UF | Kemet

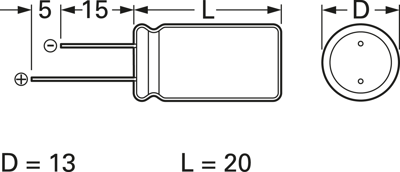

Electrolytic capacitor, 1000 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 13 mm, SH 35V/1000UF
Unit Price (€ / pc.)
0.5117 € *
Available: 4,598 pcs.
Available in 4 Days: 1,000 pcs. - if ordered today
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4046 €
100 pcs.
0.3094 €
500 pcs.
0.2642 €
1000 pcs.
0.2523 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Kemet Serie SH.
Wire connections on one side, for vertical PCB mounting. Useful life 2000 h at +105 °C
Rated voltage 35 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 1000 µF | |
| diameter | 13 mm | |
| max. operating temperature | 105 °C | |
| Length | 20 mm | |
| min. operating temperature | -40 °C | |
| Grid | 5 mm | |
| Design | radial | |
| Version | polar | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
