SH 100V/2,2UF | Kemet

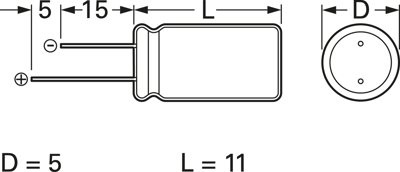

Electrolytic capacitor, 2.2 µF, 100 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5 mm, SH 100V/2,2UF
Unit Price (€ / pc.)
0.0988 € *
Available: 2,458 pcs.
Available in 4 Days: 20,000 pcs. - if ordered today
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0988 €
10 pcs.
0.0869 €
100 pcs.
0.0619 €
300 pcs.
0.0369 €
1000 pcs.
0.0250 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Kemet Serie SH.
Wire connections on one side, for vertical PCB mounting. Useful life 2000 h at +105 °C
Rated voltage 100 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Capacity | 2.2 µF | |
| diameter | 5 mm | |
| Rated voltage (DC) | 100 V | |
| Grid | 2.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Design | radial | |
| Ripple current | 22 mA | |
| Length | 11 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
