CA025M0010REB-0405 | Kemet
Electrolytic capacitor, 10 µF, 25 V (DC), ±20 %, SMD, Ø 4 mm, CA025M0010REB-0405
Unit Price (€ / pc.)
0.1642 € *
Available: 4,420 pcs.
Available in 4 Days: 42,000 pcs. - if ordered today
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1642 €
10 pcs.
0.1166 €
100 pcs.
0.1000 €
500 pcs.
0.0869 €
1000 pcs.
0.0785 €
*incl. VAT plus shipping costs
Subject to prior sale

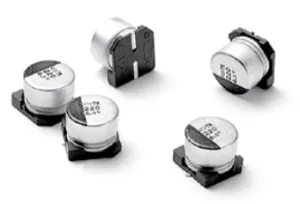

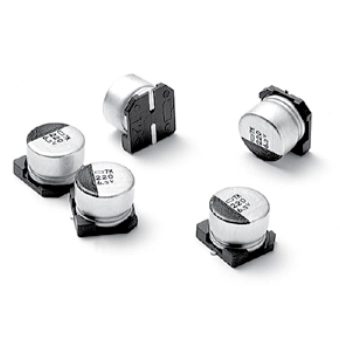

SMD aluminum electrolytic capacitor, type Kemet CA-Series.
For surface mounting and high soldering heat load, suitable for use at temperatures of up to +85 °C

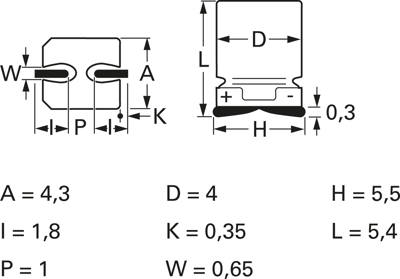

Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Rated voltage (DC) | 25 V | |
| max. operating temperature | 85 °C | |
| Tolerance | ±20 % | |
| Length | 5.4 mm | |
| Capacity | 10 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 24 mA | |
| Design | SMD | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
