C1812C103J2GACAUTO | Kemet
Ceramic capacitor, 10 nF, 200 V (DC), ±5 %, SMD 1812 (4532), C0G, C1812C103J2GACAUTO
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: On Request
SMD multilayer ceramic capacitors, size 1812, type Kemet C 1812.
Operating temperatures: C0G (NP0) –55 to +125 °C ±30 PPM/°C (ultra-stable), X7R –55 to +125 °C ±15 % (stable).
Rated voltage 200 VDC.
Technical attributes (type, rated capacitance, capacitance tolerance, ceramic grade): 0.01 µF, ±5.0%, C0G
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 10 nF | |
| Rated voltage (DC) | 200 V | |
| Tolerance | ±5 % | |
| Dielectric material | C0G | |

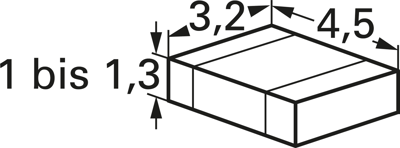

| Design | SMD 1812 (4532) | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Length | 4.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85322400 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
