C1206X103K1RAC7800 | Kemet
Ceramic capacitor, 10 nF, 100 V (DC), ±10 %, SMD 1206, X7R, C1206X103K1RAC7800
Active
Product by Kemet at Bürklin Elektronik

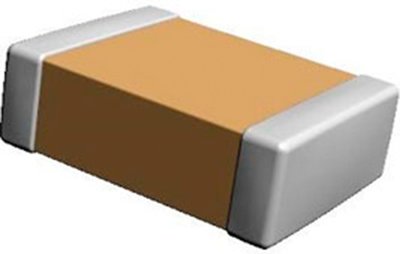

SMD multilayer ceramic capacitors, size 1206, type Kemet C 1206.
Operating temperatures: C0G (NP0) –55 to +125 °C ±30 PPM/°C (ultra-stable), X7R –55 to +125 °C ±15 % (stable), X5R –55 to +85 °C ±15 %, Y5V –30 to +85 °C +22 %/–82 %.
With flexible contact layer and rated voltage 100 VDC.
Technical attributes (type, rated capacitance, capacitance tolerance, ceramic grade): 0.01 µF, ±10 %, X7R
| Design | SMD 1206 | |
| Dielectric material | X7R | |
| Capacity | 0.01 µF | |

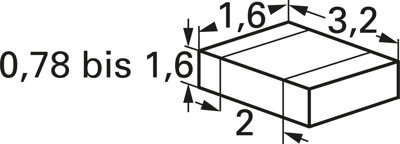

| Length | 3.2 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±10 % |
| Country of origin | MX |
| Customs tariff number | 85322400 |
| Original Packaging | Reel with 4,000 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
