TK100S10010000 | Kager
Temperature indicator, 40 to 82 °C, TK100S10010000
Order No.: 80B5500
EAN: 4099891470944
MPN:
TK100S10010000
Unit Price (€ / pc.)
21.3486 € *
Available: 155 pcs.
Leadtime: 9 Weeks **
Total Price:
21.35 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3486 €
10 pcs.
18.7901 €
50 pcs.
17.5049 €
150 pcs.
16.7314 €
500 pcs.
15.8865 €
*incl. VAT plus shipping costs
**Subject to prior sale

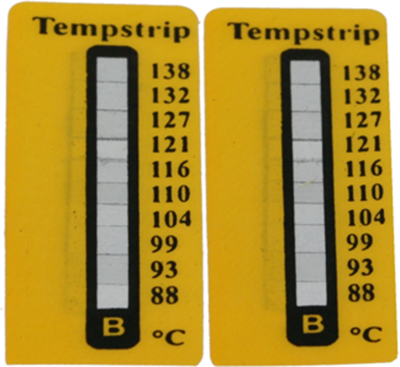

Temperature indicators, type Kager TK.
Suitable for use as irreversible color change temperature indication; Measuring tolerance: to 100 °C ±1.0 °C, above 100 °C ±1.0 %. Contact with oil, water or steam will not influence the function. The color indicators are an ideal solution for applications that are not suited for other thermal color change indication methods such as chalk, paints or tablets. Sticker color yellow.
Vertical measurement strips with 10 multiple-range fields, type V1.
Self-adhesive; Strip size: 54 x 18 mm.
Type: V1A, 40–43–46–49–54–60–66–71–77–82 °C
Technical specifications
| Product type | temperature indicator | |
| min. operating temperature | 40 °C | |
| max. operating temperature | 82 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 48239085 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
