990201400 | Kabeltronik
Digital cables, 2 x 0.14 mm², black, 2, 990201400
Unit Price (€ / mtr.)
2.2372 € *
Standard delivery time from the manufacturer is: 11 Weeks

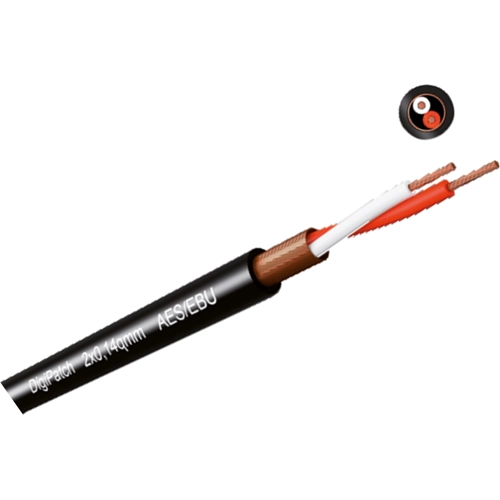

Digital cables, single-pair with filament braid, type Kabeltronik DigiPatch.
Ultra-flexible, for digital signals to AES/EBU
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 3.7 mm | |
| Version | digital cable | |
| Capacity Core/shield | 67 pF/m | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 2 x 0.14 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Shielding | shielded | |
| Colour | black | |
| Material | PVC | |
| Number of cores | 2 | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
