942202200 | Kabeltronik

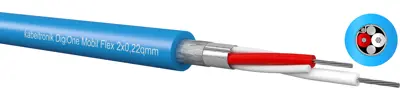

Digital cable DigiOne Mobil PURFlex 2x0.22 mm²
Unit Price (€ / mtr.)
2.499 € *
Available in 7 Days: 660 mtr. - if ordered today
Digital cable, 942202200, Kabeltronik
1-pair digital cable in footstep resistant PUR construction for mobile DMX applications. Double screen for a maximum interference resistance. For easier screen contact a drain wire is carried.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 | |
| Colour | blue | |
| Capacity core/core | 46 pF/m | |
| Core insulation material | PE | |
| Temperature range (active) | -15 °C to 80 °C | |
| Cable cross-section | 0.22 mm² | |
| Temperature range (unmoved) | -35 °C to 80 °C | |
| Number of cores | 2 | |
| Outer diameter | 6 mm | |
| Material | PUR | |
| Version | digital cable | |
| Capacity Core/shield | 89 pF/m | |
| Cable material | copper, tin-plated | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
