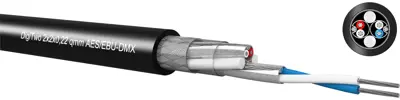

Digital cable DigTwo 2x2x0.22 mm², black
Unit Price (€ / mtr.)
3.4272 € *
Available in 7 Days: 981 mtr. - if ordered today
Digital cable, 940402200, Kabeltronik
2-pair digital cable for DMX and AES/EBU applications (go-and-return line). Very high flexibility despite double screen. Very good electrical characteristics also over long distances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | digital cable | |
| Number of cores | 4 | |
| Cable cross-section | 0.22 mm² | |
| AWG cross-section | AWG 24 | |
| Outer diameter | 7.5 mm | |
| Colour | black | |
| Shielding | shielded | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Capacity core/core | 55 pF/m | |
| Capacity Core/shield | 110 pF/m | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
