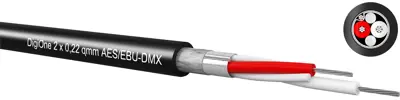

Digital cable, 940203400, Kabeltronik
As a patch cable or for permanent installation. Suitable for AES/EBU and DMX applications. Maximum flexibility despite double shielding. Very good electrical properties thanks to HD insulation material.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | digital cable | |
| Number of cores | 2 | |
| Cable cross-section | 0.34 mm² | |
| AWG cross-section | AWG 22 | |
| Outer diameter | 5.9 mm | |
| Colour | black | |
| Shielding | shielded | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Capacity core/core | 50 pF/m | |
| Capacity Core/shield | 90 pF/m | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -30 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
