890205000 | Kabeltronik

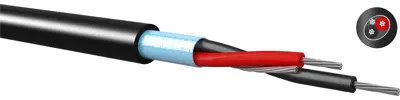

Wiring cable H2Yv0(St)H 2x0.5/0.85, black
Unit Price (€ / mtr.)
1.0353 € *
Available in 7 Days: 2,249 mtr. - if ordered today
Wiring cable, 890205000, Kabeltronik
Halogen-free wiring cable for internal rack wiring in solid wire construction. The foil screen is bonded with the jacket, so both can be stripped in one working step.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Capacity core/core | 60 pF/m | |
| Core insulation material | PE | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | Yes | |
| Cable cross-section | 0.5/0.85 mm² | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Number of cores | 2 | |
| Outer diameter | 2.5 mm | |
| Material | PE | |
| Version | wiring line | |
| Capacity Core/shield | 110 pF/m | |
| Cable material | copper, tin-plated | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
