740602805 | Kabeltronik

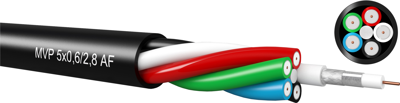

Multi-video cable MVP-PVC 5x0.6/2.8 mm AF, black
Unit Price (€ / mtr.)
8.7703 € *
Available: 250 mtr.
Available in 7 Days: 2,650 mtr. - if ordered today
Multi-video cable, 740602805, Kabeltronik
Multi-video line for mobile applications. In order to achieve uncompromising pictureand transmission-quality, this proven video cable HFV 0.6/2.8 AF is used as an interior element in these cables.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Material | PVC | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Outer diameter | 12.5 mm | |
| Version | multi video line | |
| Cable cross-section | 0.6 mm² | |
| Cable material | copper, bright | |
| Number of cores | 5 | |
| Halogen free | No | |
| Capacity Core/shield | 56 pF/m |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 50 meters |
| Country of origin | IT |
| Customs tariff number | 85442000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
