720H20000 | Kabeltronik
Combination cable CPC 1, 1x2x0.25 mm² + 2x2.5 mm²
Unit Price (€ / mtr.)
6.6402 € *
Available in 7 Days: 577 mtr. - if ordered today

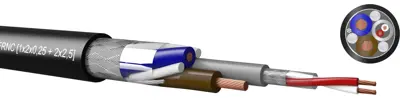

Hybrid cable, 720H20000, Kabeltronik
Hybrid cable with one shielded data pair (110 Ohm) and two power-cores. Applications include controlling audio equipment or lighting systems. Double screened (pair and total screen).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| Cable cross-section | 2.5 mm² | |
| Outer diameter | 10.4 mm | |
| Version | combination cable | |
| Material | FRNC | |
| Temperature range (active) | -15 °C to 80 °C | |
| Number of cores | 2 | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Shielding | shielded | |
| Core insulation material | PP | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 50 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
