720065000 | Kabeltronik

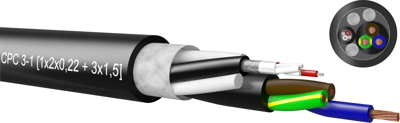

Combination cable CPC 3-1, 1x2x0.22 mm² + 3x1.5 mm²
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
5.95 € *
Available in 7 Days: 2,150 mtr. - if ordered today
Hybrid cable, 720065000, Kabeltronik
Hybrid cable with one double shielded data pair (110 Ohm) and one power cable for easier connector assembly. Applications include controlling audio equipment or lighting systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | combination cable | |
| Number of cores | 5 | |
| Cable cross-section | 1 x 2 x 0.22 mm² + 3 x 1.5 mm² | |
| Outer diameter | 12.4 mm | |
| Colour | black | |
| Shielding | shielded | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, bright | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -20 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 50 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
