720050000 | Kabeltronik

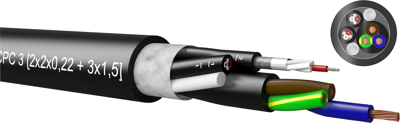

Combination cable CPC 3, 2x2x0.22 mm² + 3x1.5 mm²
Unit Price (€ / mtr.)
7.2947 € *
Available in 7 Days: 2,904 mtr. - if ordered today
Hybrid cable, 720050000, Kabeltronik
Hybrid cable with two double shielded data pairs (110 Ohm) and one power cable for easier connector assembly. Applications include controlling audio equipment or lighting systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | combination cable | |
| Number of cores | 7 | |
| Cable cross-section | 2 x 2 x 0.22 mm² + 3 x 1.5 mm² | |
| Outer diameter | 15.5 mm | |
| Colour | black | |
| Shielding | shielded | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | copper, tin-plated | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Temperature range (active) | -15 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 50 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
