720045000 | Kabeltronik

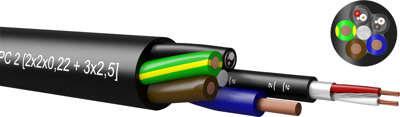

Combination cable CPC 2, 2x2x0.22 mm² + 3x2.5 mm²
Unit Price (€ / mtr.)
6.4736 € *
Available in 7 Days: 1,470 mtr. - if ordered today
Hybrid cable, 720045000, Kabeltronik
Hybrid cable with two shielded data pairs and three power-cores. Applications include controlling audio equipment or lighting systems. Small outer diameter, very flexible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Core insulation material | PVC | |
| Temperature range (active) | -15 °C to 70 °C | |
| Halogen free | No | |
| Cable cross-section | 2 x 2 x 0.22 mm² + 3 x 2.5 mm² | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Number of cores | 7 | |
| Outer diameter | 12.5 mm | |
| Material | PVC | |
| Version | combination cable | |
| Cable material | copper, bright | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 50 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
