58D2H2209 | Kabeltronik
Microphone line, 2-wire, 0.22 mm², shielded, FRNC, black, 58D2H2209
Unit Price (€ / mtr.)
3.5700 € *
Available in 7 Days: 3,700 mtr. - if ordered today
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
1 mtr.
3.5700 €
10 mtr.
3.1773 €
50 mtr.
2.7727 €
100 mtr.
2.5109 €
500 mtr.
2.3205 €
*incl. VAT plus shipping costs
Subject to prior sale

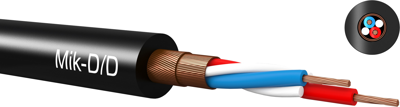

Microphone cable, 58D2H2209, Kabeltronik
FRNC/LSZH version for fixed installations,for usages on stage, events, studios. There is no scope for interferences because the double spiral shielding. The PE core insulation causes to low capacity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 4.8 mm | |
| Test voltage | 1.2 kV | |
| Rated voltage | 500 V | |
| Core insulation material | PE | |
| Halogen free | Yes | |
| Cable cross-section | 0.22 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Colour | black | |
| Material | FRNC | |
| Product type | microphone cable | |
| Number of cores | 2 | |
| Temperature range (active) | -15 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
