580202209 | Kabeltronik
Microphone line, 2-wire, 0.22 mm², shielded, PVC, black, 580202209
Unit Price (€ / mtr.)
2.1896 € *
Available: 65 mtr.
Available in 7 Days: 5,525 mtr. - if ordered today
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
1 mtr.
2.1896 €
10 mtr.
1.9278 €
50 mtr.
1.7493 €
100 mtr.
1.6184 €
500 mtr.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

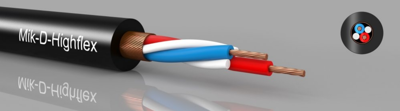

Microphone cable, 580202209, Kabeltronik
Microphone cable for stage, events, studio usage. Footstep resistance and robust due to the enhanced wall thickness of the outer jacket. The PE core insulation causes a low capacity, that soft PVC jacket is supple and low temperature resistant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.4 mm | |
| Marking | No | |
| Test voltage | 1.2 kV | |
| Rated voltage | 500 V | |
| Core insulation material | PE | |
| Halogen free | No | |
| Cable cross-section | 0.22 mm² | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Colour | black | |
| Material | PVC | |
| Product type | microphone cable | |
| Number of cores | 2 | |
| Temperature range (active) | -15 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
