580202208 | Kabeltronik
Microphone cable 2 x 0.22 mm², red
No longer available from manufacturer
Unit Price (€ / mtr.)
1.4756 € *
Available: 30 mtr.
Available in 7 Days: 1,080 mtr. - if ordered today

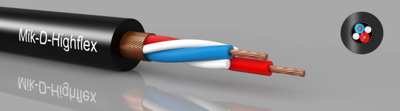

Microphone cable, 580202208, Kabeltronik
Microphone cable for stage, events, studio usage. Footstep resistance and robust due to the enhanced wall thickness of the outer jacket. The PE core insulation causes a low capacity, that soft PVC jacket is supple and low temperature resistant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.4 mm | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Halogen free | No | |
| Number of cores | 2 | |
| Marking | No | |
| Test voltage | 1.2 kV | |
| Material | PVC | |
| Version | microphone cable | |
| Colour | red | |
| Rated voltage | 500 V | |
| Core insulation material | PE | |
| Cable material | copper, tin-plated | |
| Temperature range (active) | -15 °C to 70 °C | |
| Cable cross-section | 0.22 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
