580202207 | Kabeltronik

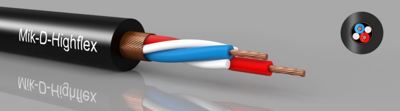

Microphone line, 2-wire, 0.22 mm², shielded, PVC, blue, 580202207
No longer available from manufacturer
Unit Price (€ / mtr.)
1.4756 € *
Available: 40 mtr.
Available in 7 Days: 794 mtr. - if ordered today
Microphone cable, 580202207, Kabeltronik
Microphone cable for stage, events, studio usage. Footstep resistance and robust due to the enhanced wall thickness of the outer jacket. The PE core insulation causes a low capacity, that soft PVC jacket is supple and low temperature resistant.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Marking | No | |
| Test voltage | 1.2 kV | |
| Product type | microphone cable | |
| Colour | blue | |
| Number of cores | 2 | |
| Outer diameter | 6.4 mm | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Shielding | shielded | |
| Temperature range (active) | -15 °C to 70 °C | |
| Rated voltage | 500 V | |
| Cable material | copper, tin-plated | |
| Halogen free | No | |
| Core insulation material | PE | |
| Cable cross-section | 0.22 mm² | |
| Material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
